Name: 304 Stainless Steel Pedestrian Manufacturing Diverse Safety Swing Barrier Turnstile Access Control Gate
Brand: 304 Stainless Steel Pedestrian Manufacturing Diverse Safety Swing Barrier Turnstile Access Control Gate
SKU: EG-BZ001
Price: 433.06 USD
Availability: InStock
Rating: 5 (155 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: EG-BZ001

Product name: Security Swing Turnstile Barrier Pedestrians Access Control Gate

Material: 304 Stainless Steel

colour: silver

Size: 1200*280*1000mm

Production Process: CNC Laser Cutting

MOQ: 1pcs

Power input: AC100-240V,50/60HZ

Operation voltage: DC24V, 3A, Power: 40W( Brushless Motor Optional)

Electromagentic: Duty Cycle 100%

Grundinformation

Model Number: EG-BZ001

Zahlung und Versand AGB

Packaging Details: Foam+Carton Box+Seaworthy wooden

Produkt-Beschreibung

Products Description

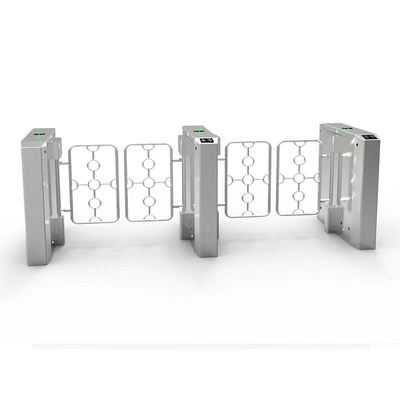

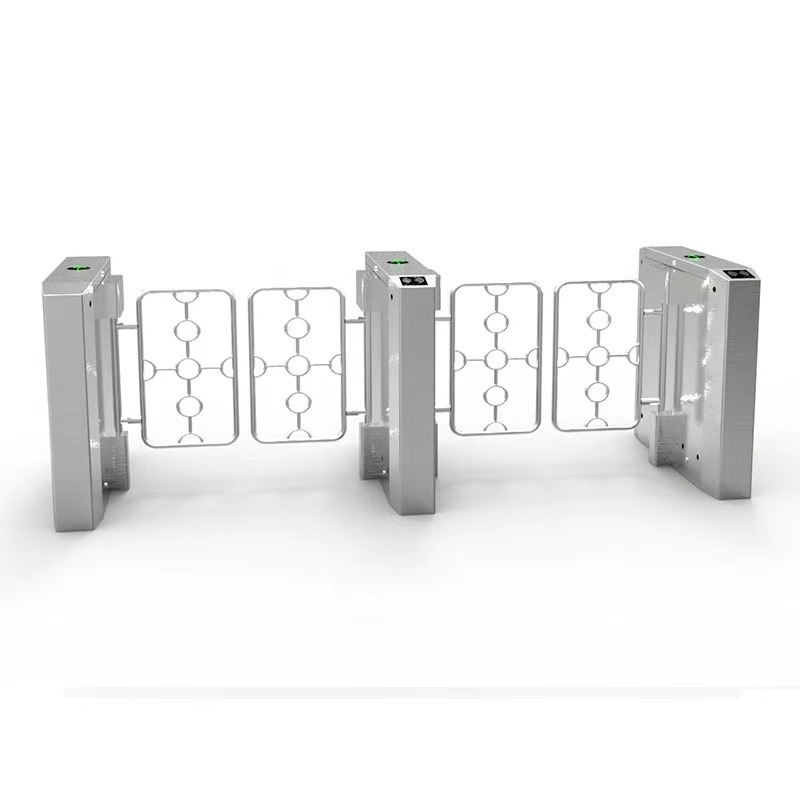

Small Swing Turnstile

Small Swing turnstile is the intelligent access management produced by our company after several years R & D , this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.

Model	EG-BZ001
Case Material	SS304(1.5mm, 2.0mm optional)/Baking varnish
Barrier Arm Material	SS304(Acrylic Available)
Production Process	CNC Laser Cutting
Overall Dimension	12002001000mm(Customization acceptable)
Power input	AC100-240V,50/60HZ
Operation voltage	DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic	Duty Cycle 100%
Barrier Barrier Arm Length	280mm(Customization acceptable)
Passage Width	600mm(Customization acceptable)
Passage direction	Single directional/Bi-directional(Optional)
Operating time	1S
Throughput Rate	25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on	3S
MCBF	5,000,000 Cycles
Automatic Reset Function	Automatically locked within set time(Time Adjustable)
LED Indcator	Yes
Operation Humidity	0~95%(No Freezing)
Operation Temperature	-10℃~+50℃
Operation Eenvironment	Indoor,Outdoor(Shelter)
Protection Level	IP45
Communication Interface	Standard RS485 interface, distance ≤1200 meters
Input Interface	Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

Transparent Acrylic Flap 10mm thickness flap, the acrylic barrier arm width 280mm(Color Optional) Strong Mechanic Component The stamping formed motion machinism and CNC machine Connector offer the stable locking & unlocking Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain.

Advantage

1.Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.

2. Smoothly Running, small noise, simple and reliable restructure.

3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice.

4. Control panel with counting function, LCD/LED display function (optional)

5. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedstrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedstrians with luggage going through.

6. Intelligent voice and sound prompts make the device more user-friendly and easier to use. With auto malfunction inspection and alarm function, convenient for user maintenance and use.

8. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg).

9. Sound and light alarm function: including illegal break-in, trailing alarm.

10. Anti - impact function, the flap automatic locked without the open signal.

11. With automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.

12. Infrared sensor reset, infrared sensor anti-pinch function (standard 4 pairs of infrared ray).

13. After power off, the access automatically open and automatically closed after power on.

14. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments.

More Product

Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.

Q3: how do we install those revolving doors / barrier doors? Is it easy to do?

Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?

A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
